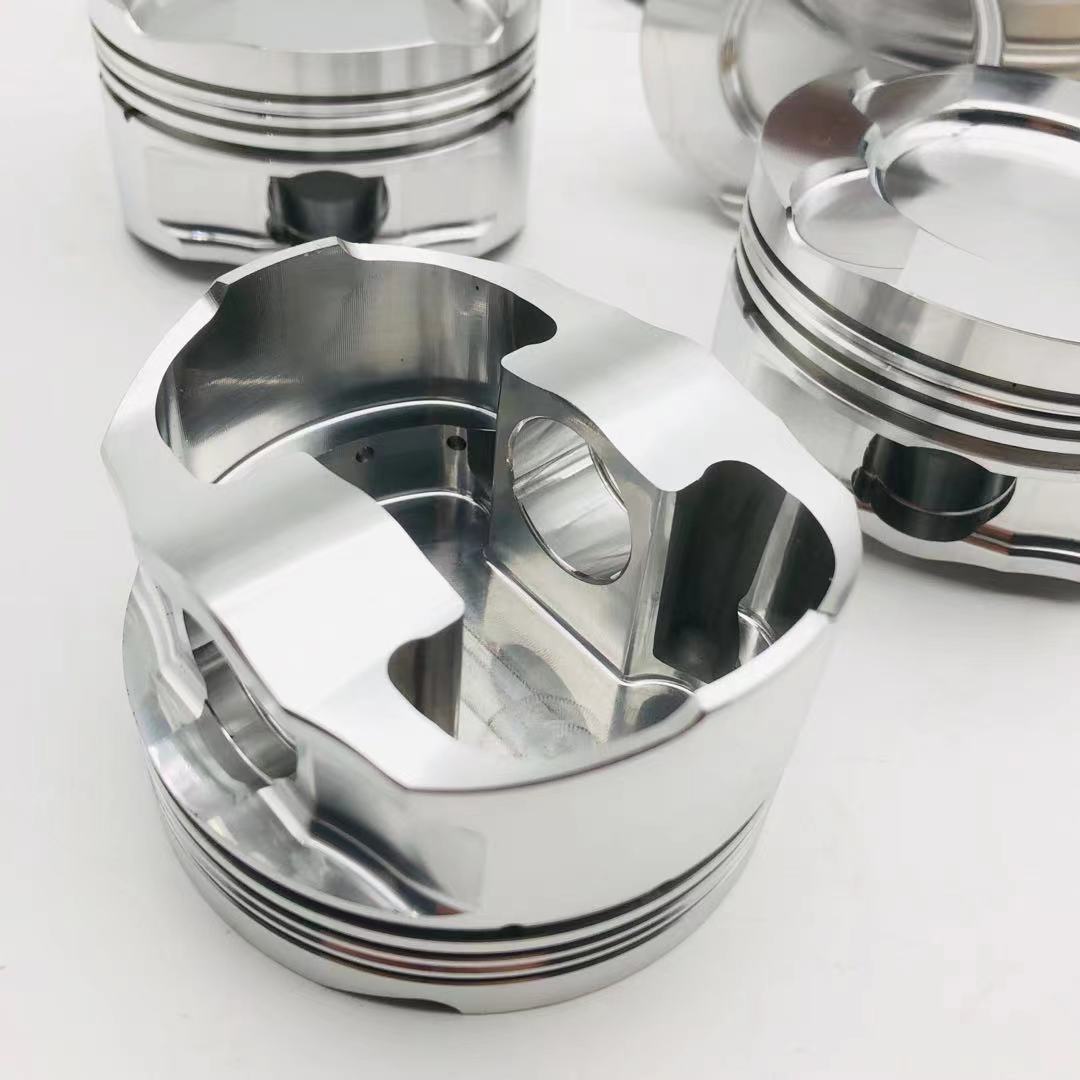

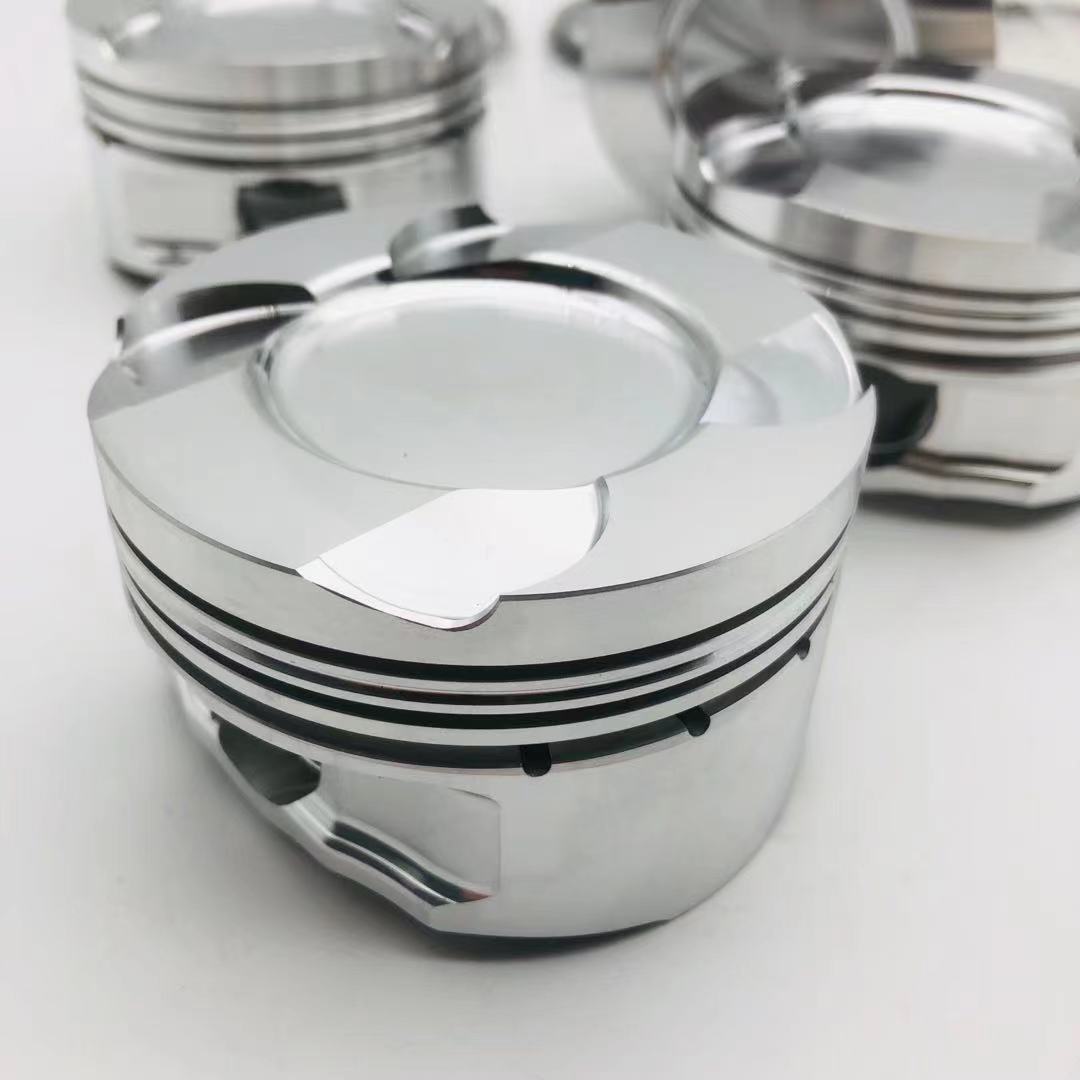

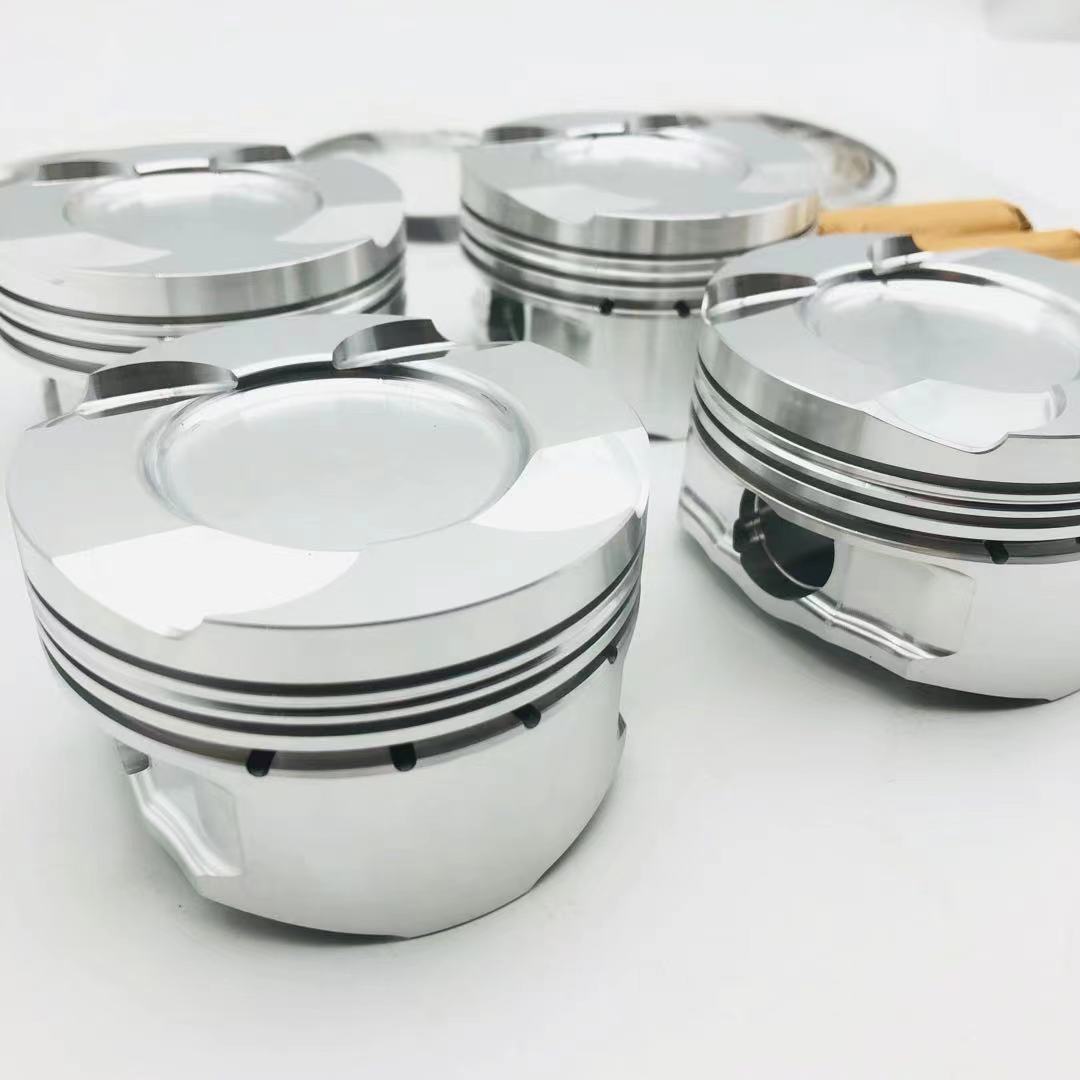

N20 Forged Pistons For BMW N20B20 228i 328i 528i X1 Z4

Product Specifications

Forged Pistons:

• Material: 4032 Alloy
• Bore Dia.: 84.00/84.50mm
• Pin Size: 22.00mm
• Compression Ratio: 10:1
• Compression Height: 32.50mm
• Overall Height: 51.00mm
• Set of 4

Technical Features of Hench Performance Forged Pistons

• Pin Oiling, for better lubrication of Piston Pins and significantly extend lifetime at super high temperature and rpm.
• Moly Coated on skirt for reducing friction of piston and cylinder wall(optional)
• Phosphate Coating(optional)
• CNC machining for superior tolerances, precise as much as 0.005mm
• Optimal balancing for weight matched sets of ± 0.5gram

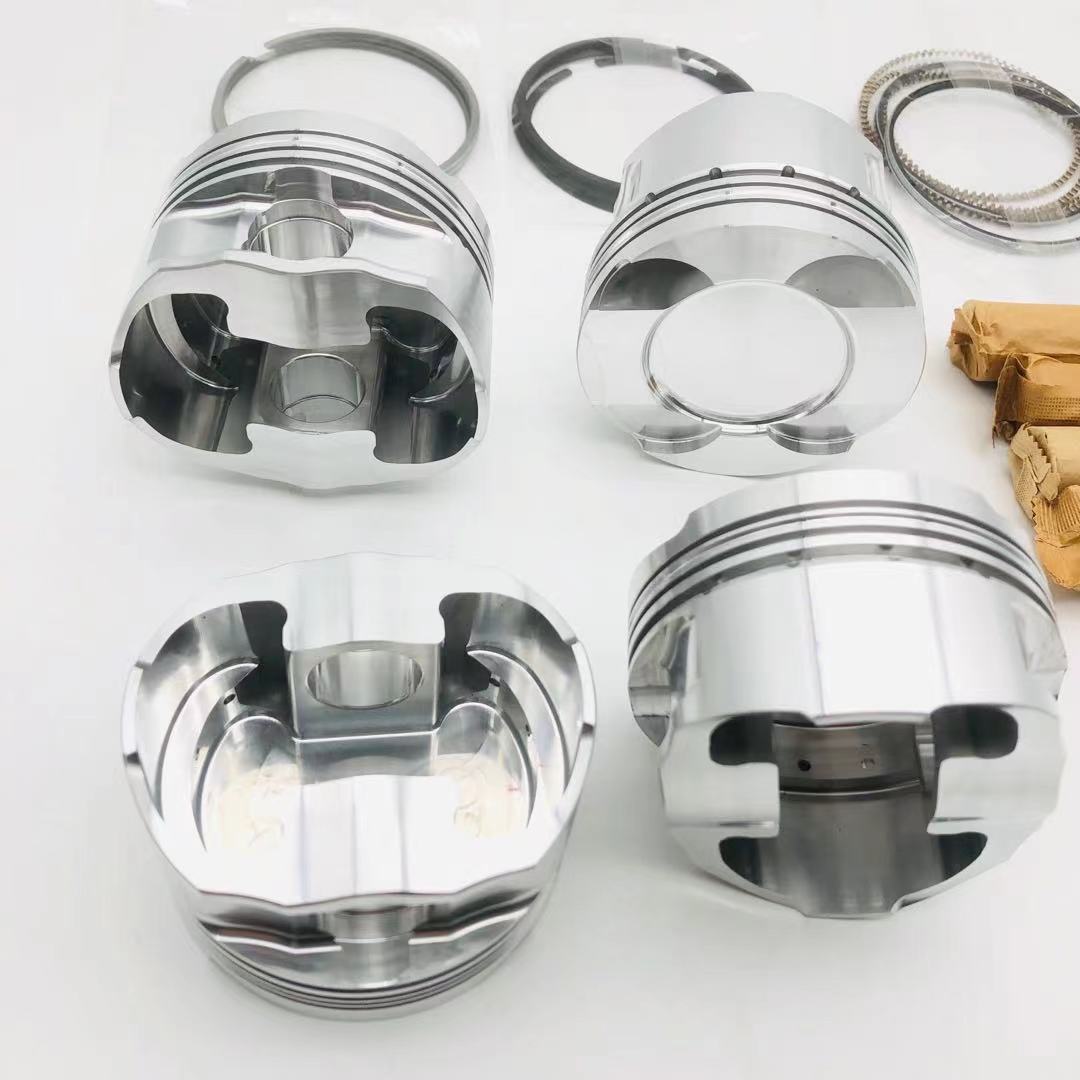

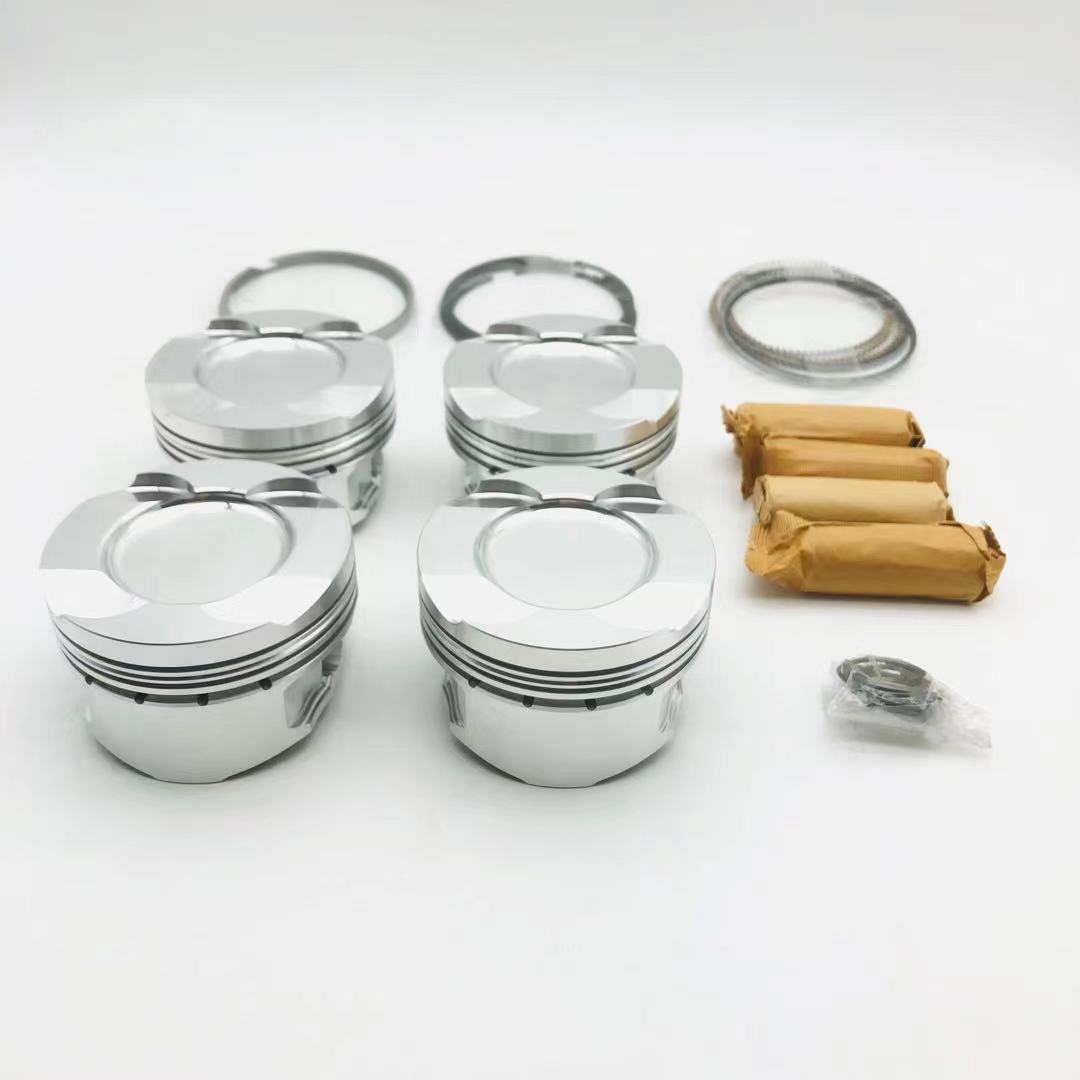

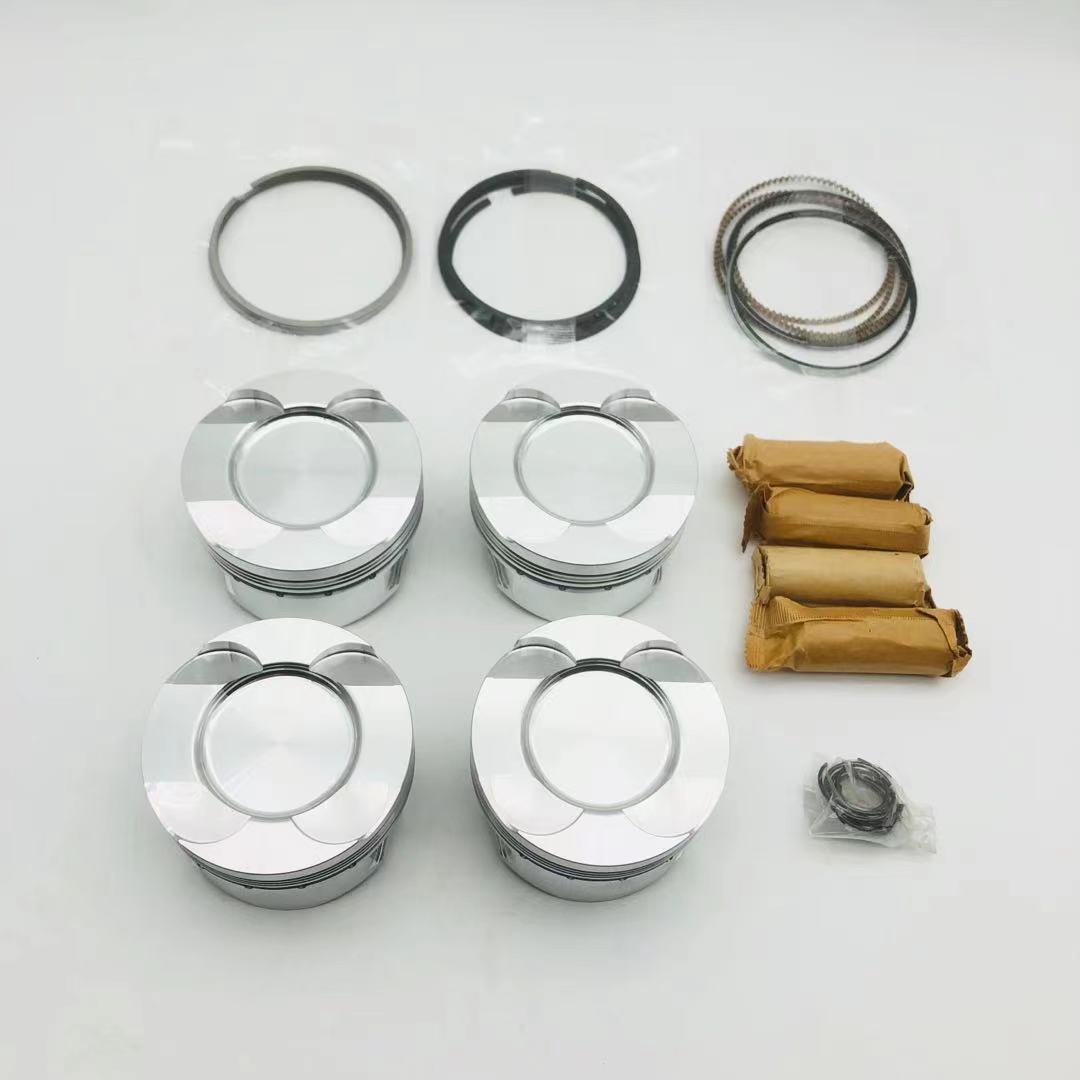

Contains:

• Piston x 4
• Piston Pin x 4
• Pin Lock x 8
• Piston Ring x 4

Application:

• BMW – 1 Series 2012-2017(F20) 125i
• BMW – 2 Series 2014-2016(F22) 220i, 228i
• BMW – 3 Series 2011-2016(F30) 320i, 328i
• BMW – 3 Series 2013-2016(F34) 320i GT, 328i GT
• BMW – 4 Series 2014-2016(F32) 420i, 428i
• BMW – 5 Series 2011-2016(F10) 520i, 528i
• BMW – Z4 2011-2016(E89) sDrive20i, sDrive28i
