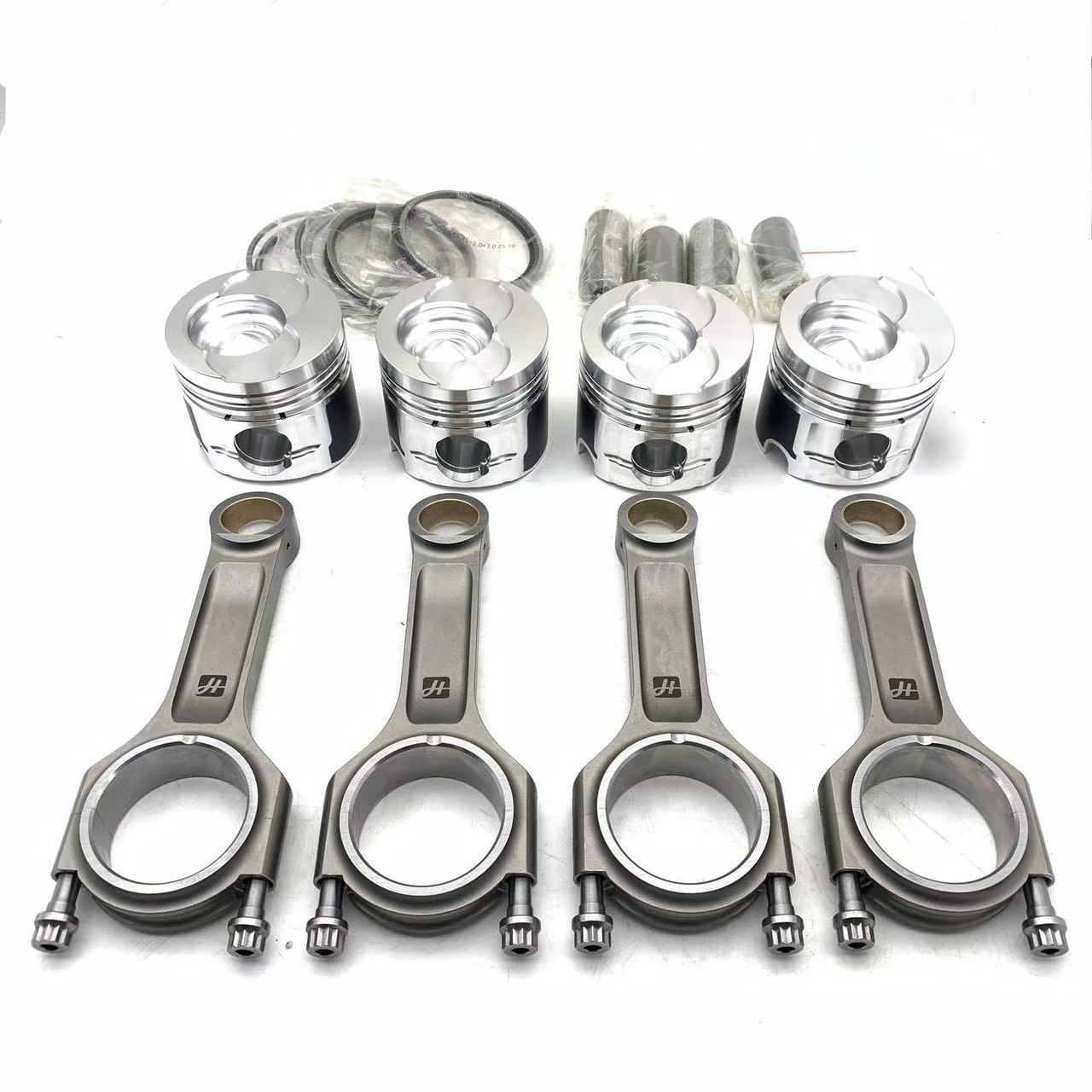

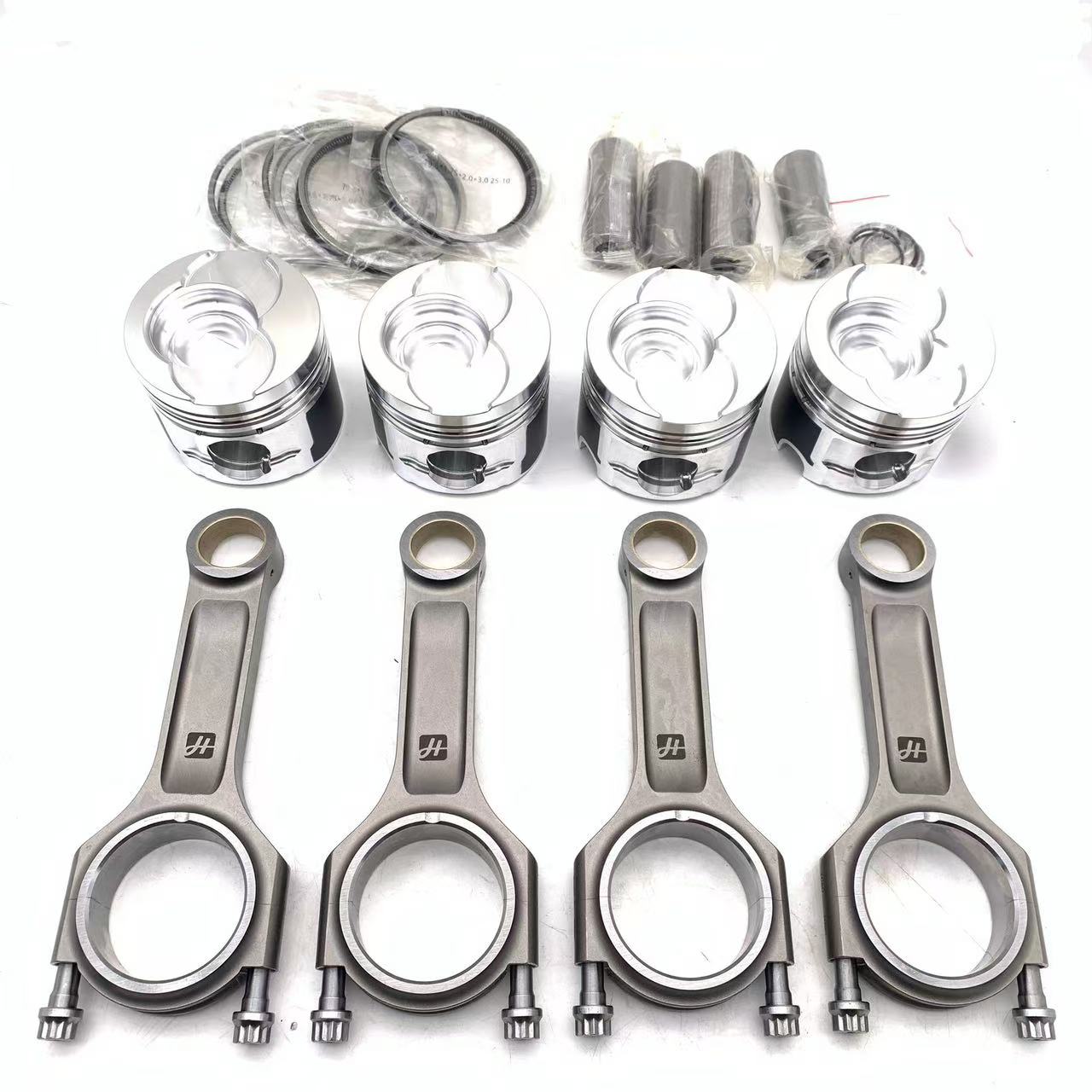

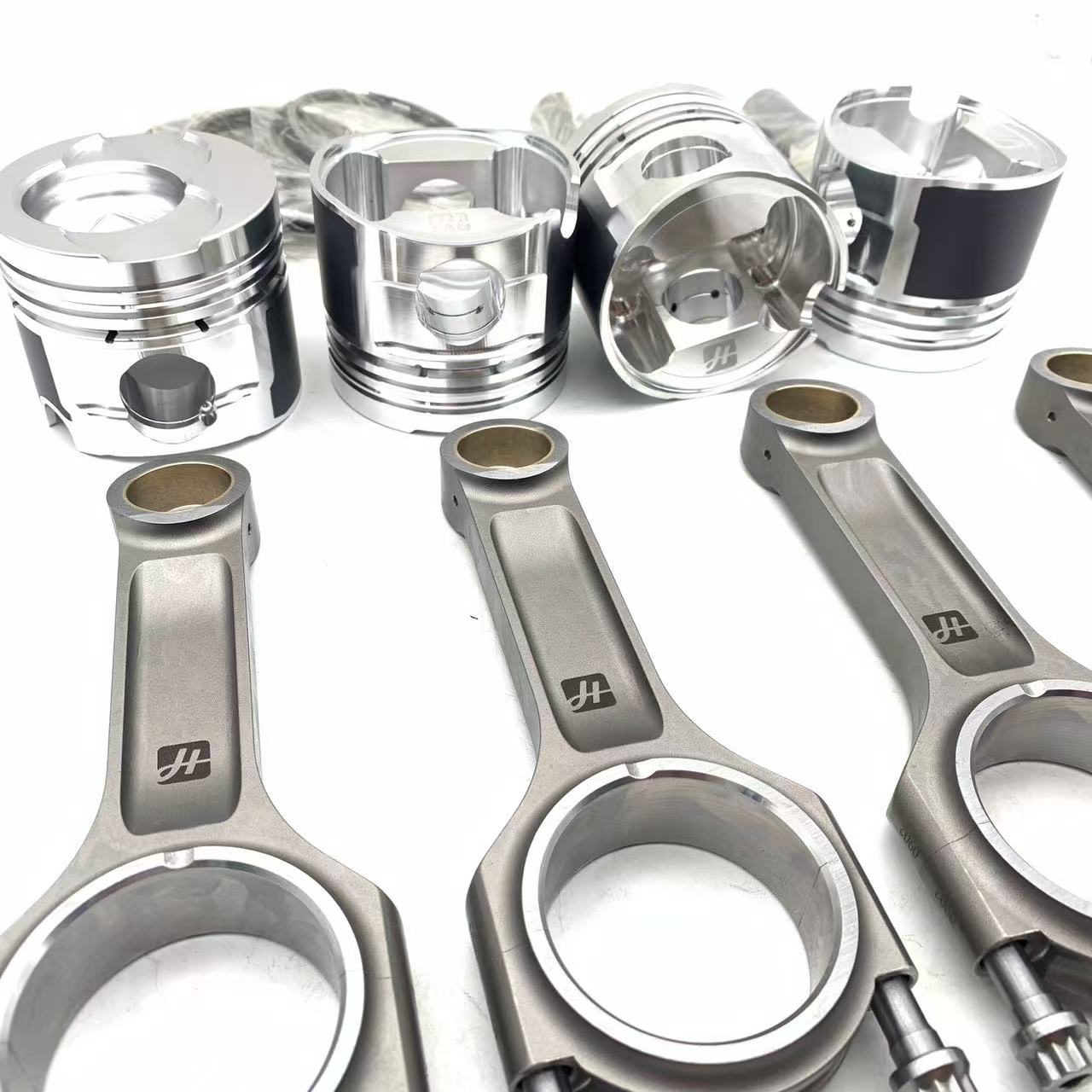

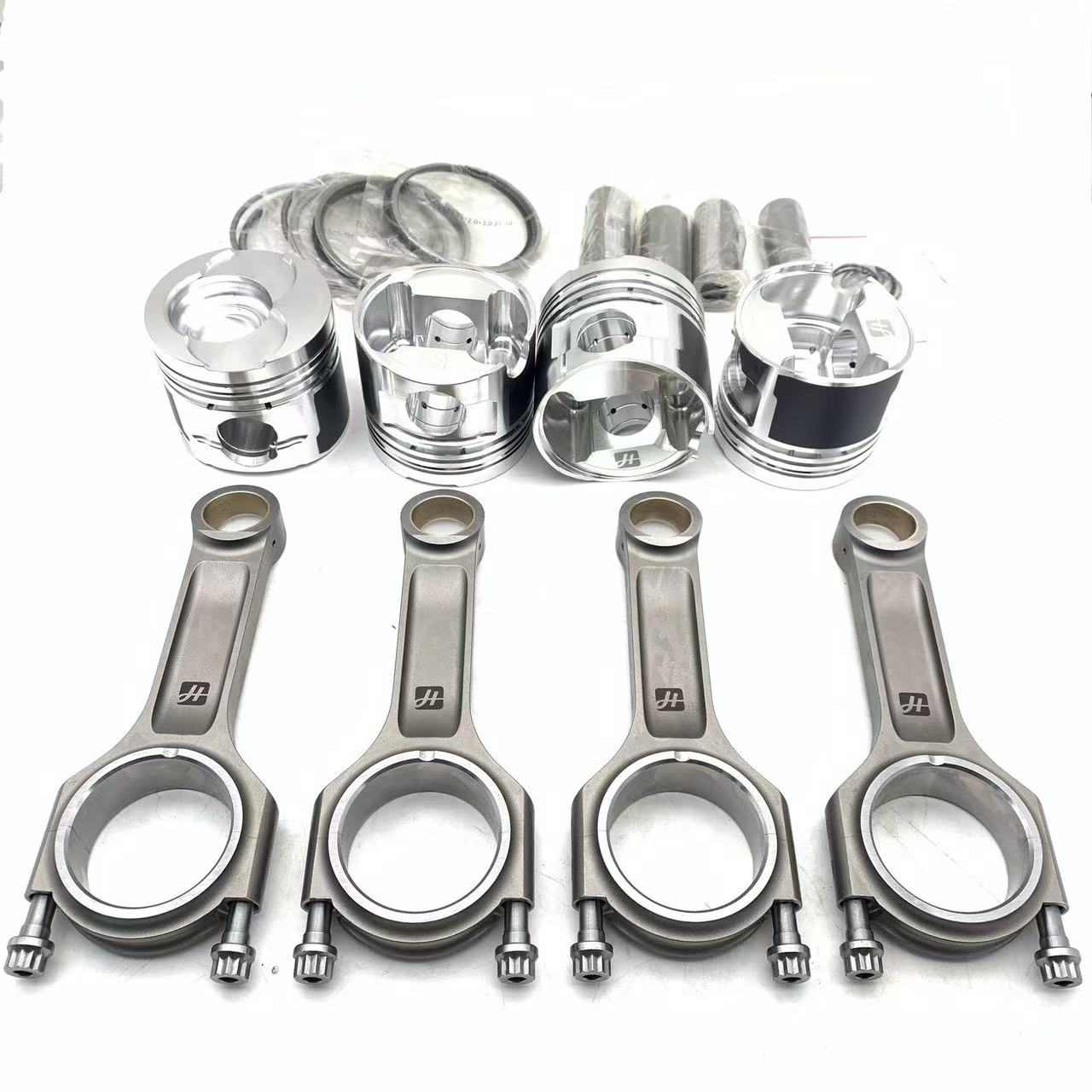

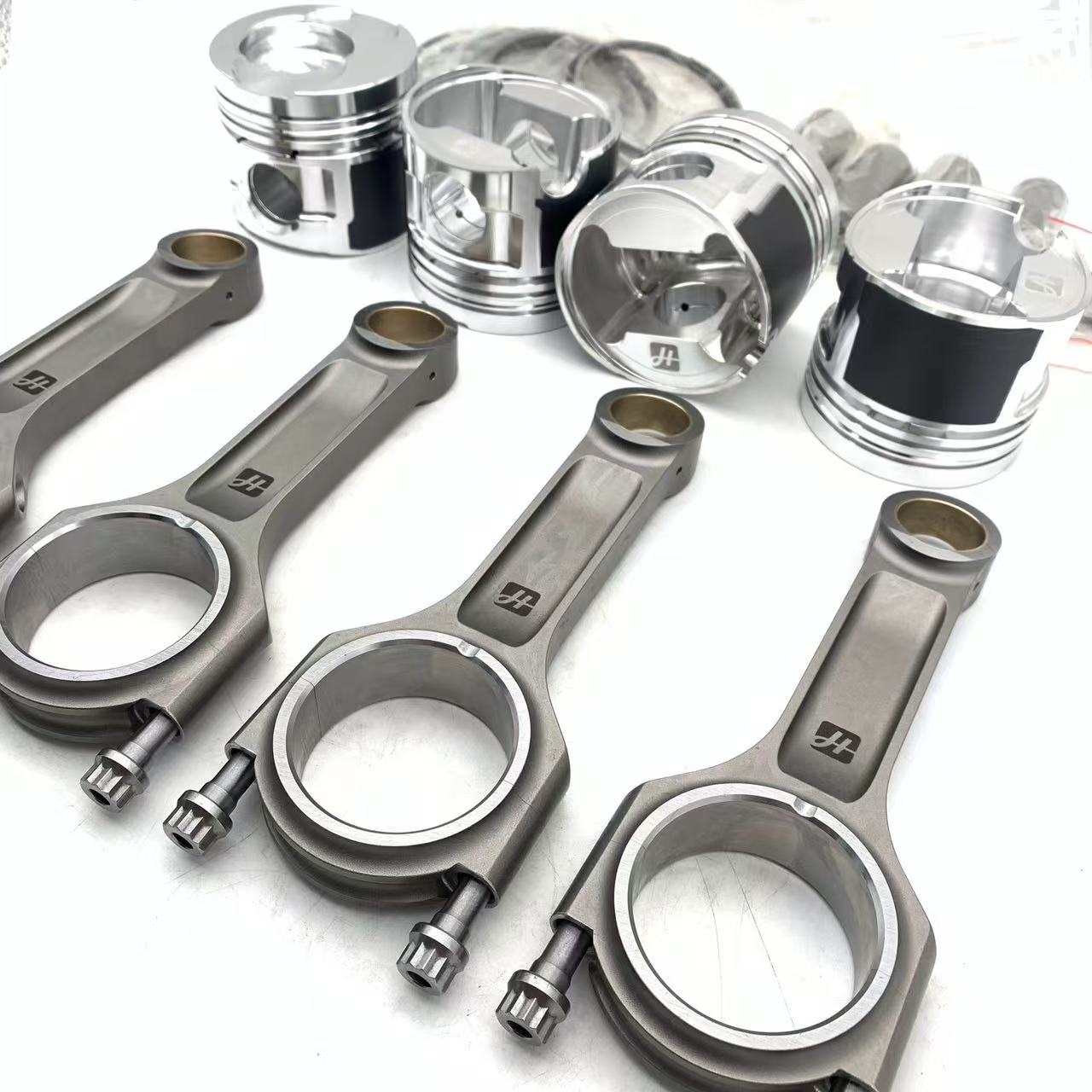

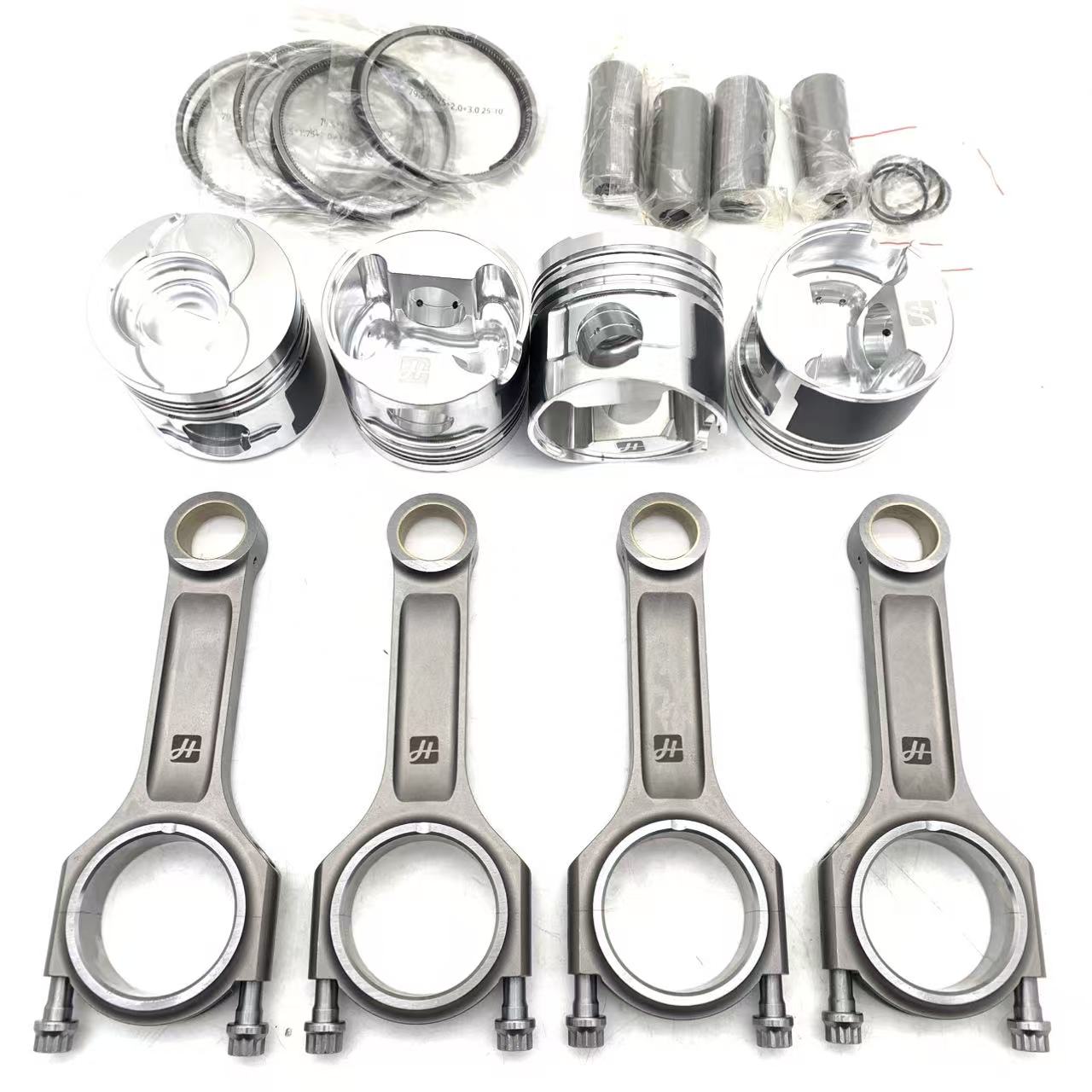

1.9 TDI Forged Pistons Rods Kit for VAG 1.9 TDI PD 79.5mm 144x26mm

Product Specifications

Forged Connecting Rods:

• Material: 4340 Alloy
• Shape: I-Beam
• Bolt Size: 3/8″
• Length (C-C): 144.00mm
• Big End Diameter: 53.70mm
• Pin End Diameter: 26.00mm
• Big End Width: 24.90mm
• Pin End Width: 24.90mm(Tapered)
• Set of 4

Forged Pistons:

• Material: 4032 Alloy
• Bore Dia.: 79.50
• Pin Diameter: 26.00mm
• Compression Ratio: 18:1
• Compression Height: 45.80mm
• Overall Height: 69.80mm
• Set of 4

Technical Features of Hench Performance Connecting Rods

• Two-Piece forging for great strength
• Shot Peening for improved fatigue life
• Bronze bushing with radial groove.
• Magnaflux Inspection guarantees that the consistency of the forged material meets our high-quality standard
• Multi Stages Heat Treatment for maximum strength, dimensional stability, and fatigue life.
• CNC machining for superior tolerances, precise as much as 0.005mm
• Optimal balancing for weight matched sets of ± 0.5gram

Technical Features of Hench Performance Forged Pistons

• Pin Oiling, for better lubrication of Piston Pins and significantly extend lifetime at super high temperature and rpm.
• Moly Coated on skirt for reducing friction of piston and cylinder wall(optional)
• CNC machining for superior tolerances, precise as much as 0.005mm
• Optimal balancing for weight matched sets of ± 0.5gram
• Bigger valve pockets for oversized valves.
• Optimal mass balanced for smooth rotation.

Contains:

• Piston x 4
• Piston Pin x 4
• Pin Lock x 8
• Piston Ring x 4
• Connecting Rod x 4
• Bolt x 8

Application:

Volkswagen 1.9 TDI

• VW 1.9 TDI PD130 PD150
• Audi A3 / S3 / RS3 8L1（MK1） 1996 – 2003 Hatchback 1.9 TDI
• AUDI A4 (8E,B6) 2000-2004 – 1.9 TDI
• AUDI A6 (4B,C5) 1997-2005 – 1.9 TDI
• Seat Leon 1M1 1999 – 2006 Hatchback 1.9 TDI
• SEAT Toledo (1M) 1999-2005 – 1.9 TDI
• SKODA Octavia (1U2) 1996-2010 – 1.9 TDI
• SKODA Superb (3U4) 2002-2008 – 1.9 TDI
• Skoda Fabia I 6Y2 1999 – 2008 Hatchback 1.9 TDI
• VW Bora (1J2) 1998-2005 – 1.9 TDI
• VW Golf MK IV 1997 – 2006 1.9 TDI
• VW Golf MK III 1991- 1999 1.9 TDI
• VW Golf Cabriolet MK III 1993 – 2002 Convertible 1.9 TDI
• VW Passat B5 GP (3BG) 2001-2005 1.9L TDI
• VW Polo 9N_ 2001- 2009 Hatchback 1.9 TDI
